PU Foam Roller Shutter Slat Door Roll Forming Machine

  • >=1 Sets
    $45,000.00
Model Number:
Gear box type
Power:
7.5KW
Samples:
Gear box type , 7.5KW
$500.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Production Capacity:
10-12m/min
Rolling thinckness:
0.3-0.8mm
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Use:
shutter door
Place of Origin:
Jiangsu, China
Brand Name:
GIHUA
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
22000*1000*1400mm
Weight:
12Tons
Certification:
CE/ISO9001
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Feeding width:
900mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Raw materials:
Steel
Color:
Blue and yellow
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for ocean
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 60 To be negotiated
Product Description
                                                              PU Shutter door roll forming machine（Only for reference）
If you have your own special requirements,our machine can be also customized.

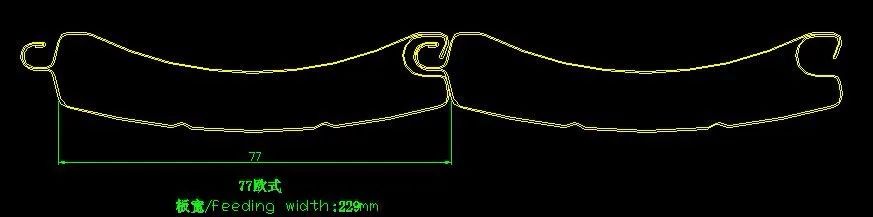

profile as following:

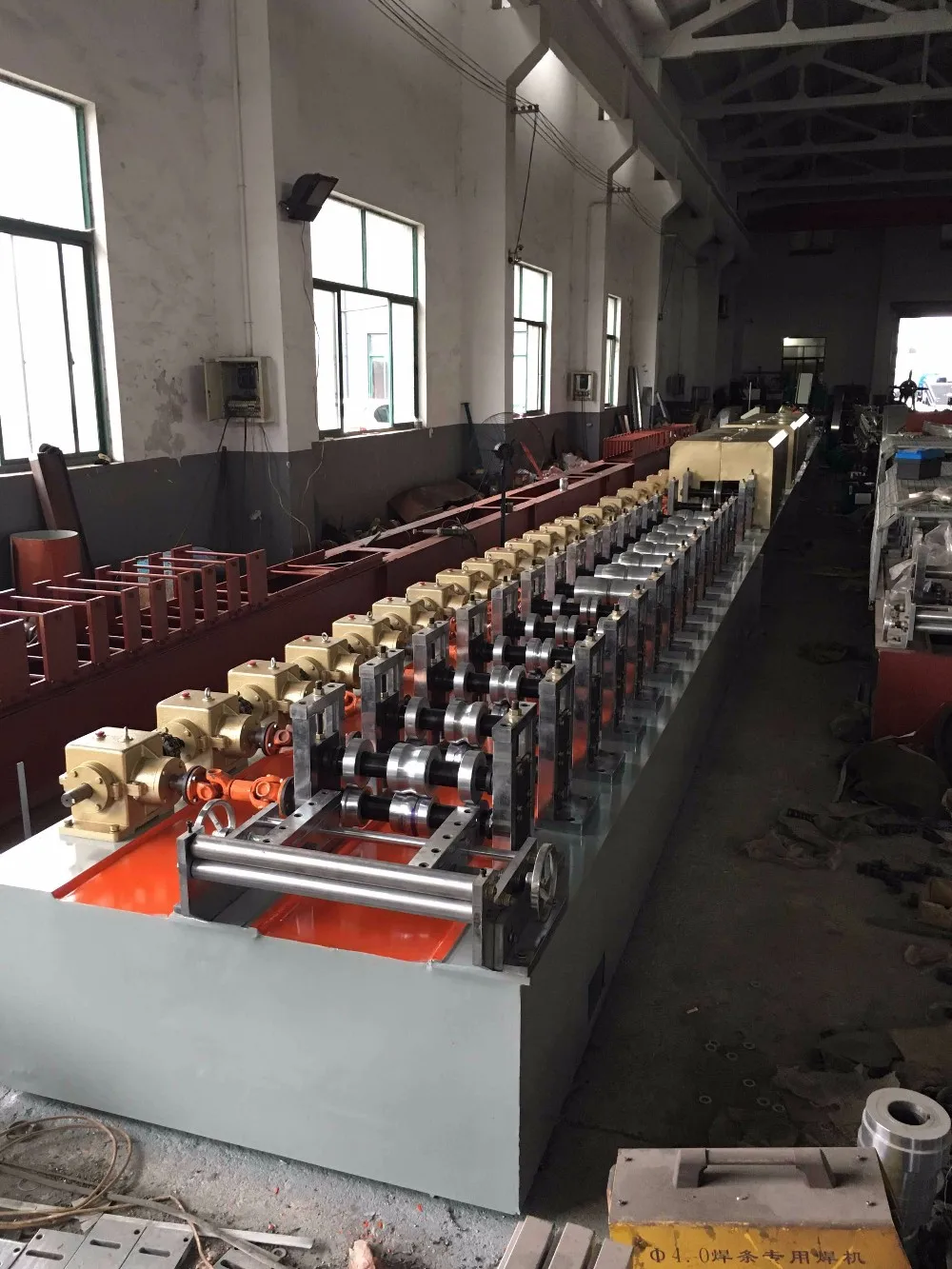

Whole machine:

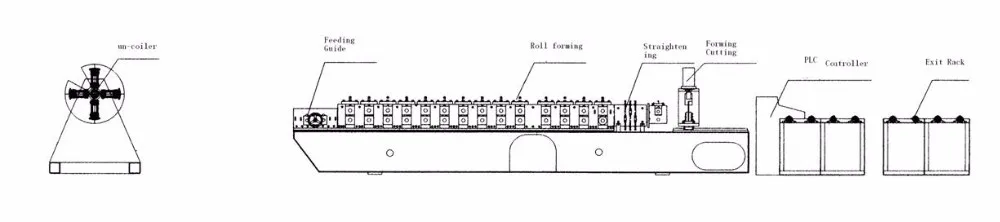

PRODUCE PROCESS

Put the steel coil on the un-coiler—→Feeding guide equipment—→Roll-forming Machine—→Foaming machine —→Adjusting device —→ Punching device----Flying saw cutting—→finished products on stacker

Technology

Components of the machine

Un-coiler
Leveling device
Main forming machine
Foaming machine
Adjusting device
Pneumatic following cutting device
PLC Control system
Finished product shelf

Main specification

1. Suitable plate: as customize

2. Working speed: 10-12 m/min

3. Steps: 36+1

4. Material of roller: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62

5. Material of main roller: #45 advanced steel (Diameter: ￠40)

6. Driven: Gear, Gimbals

7. Main power: 7.5KW

8. Cutting: Pneumatic following cutting

9. Material of cutting knife: Cr12Mov, Quench HRC58-62

10. Cutting power: 2.2KW

11. The whole machine is controlled by industry computer-PLC. Including:

PLC: PANASONIC (Japan)

Touch screen: PANASONIC (Japan)

Rotating coder: Omron (Japan)

Transducer: PANASONIC (Japan)

12. Dimension of the whole line: 22000mm length

13. Weight: Approx. 12 Ton

14. Warranty time: one year

Package&Delivery
Our Service

Enginer to test machine for clients.

Clents learning to check the products.


FAQ

 If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
