Iron Roofing Sheet/Plate/Panel Making Machine For Sale

  • >=1 Sets
Model Number:
$500.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Production Capacity:
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Place of Origin:
Brand Name:
380V 50Hz 3phases
5 Tons
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Raw materials:
Blue and yellow
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for sea shipping.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
                                                               YX25-205-820   panel roll forming machine(Only for reference)
 Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as  following data (or equivalent tolerances);
 Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking  of the steel or metal coating is not permitted for all required steel grades;
 Maximum production speed: not less than 15 metres per minute (excluding cutting);
 Material: 0.3-0.8mm, GI or clor steel, yelid strength: 195-235Mpa;
 If you have your own special requirements,our machine can be also customized.

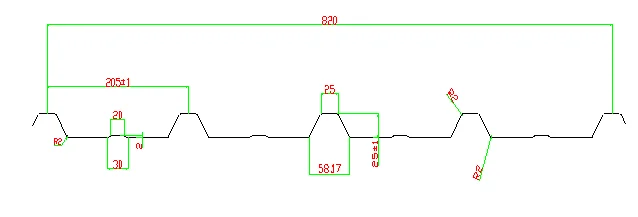

profile as following:

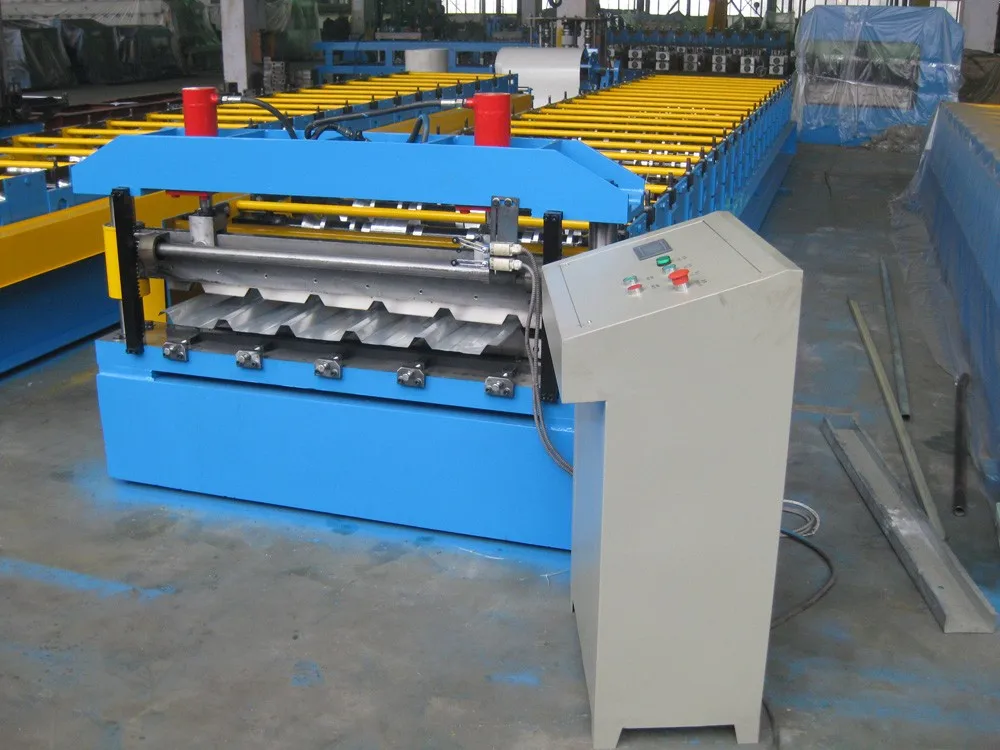

Whole machine:

Main Features

1) Material of the profile: GI or color steel
2) Thickness range: 0.3-0.8mm
3) Main motor power:5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
 4) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
 5) Roll station: about 18 stations (according the final design)
 6) Roller material:ASTM1045 chrome plated surface with chrome,CNC,
 7) Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
 8) Machine roll forming speed:not less than 15m/min
 9) Transmission: by chain, one inch, single line
10) Roll former has leveling bolts in the base for adjust the leveling
11) Machine base frame adopt H beam welding steel
12) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
13) Machine adopt new station to make machine more strong
14) To avoid accidents,all of drive part adopt protect cover
15) Color of machine: Blue and yellow (or base on customer request)


Manual decoiler:

 Dimensions: 1700mm*1000mm*800mm

 Width of feeding: 1250mm
 Capability: 5 Ton
 Inter diameter: 480-570mm
 Maximal out diameter: 1500mm
 Mode of expand &fight: inner expand &fight by manual
 Way of feeding: manual

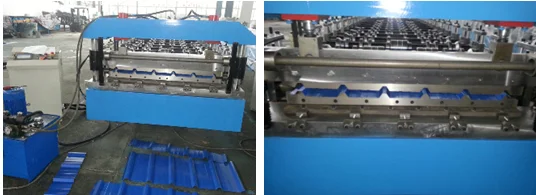

Detailed Images

Forming section

 Adjustable center of the forming rollers and of sufficient  length to prevent lateral movement of the strip on its entry to  flattener.
 Feeding type: adjustable
 Feeding width:900-1300mmmm
 Entrance and guide roller: diameter is ¢56mm, material is  SAE1045,surface with chrome

Cutting :

Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable

 Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program

out table:

 Jointed by 60mm*40mm tube
 Size: 1.0m long*0.8mwide*0.6-1mhigh
 One out table with two support roller
 Two sets.

Hydraulic station:

Hydraulic power: 4kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

                                                                              loading machine

Our Service

Enginer to test machine for clients.

Clents learning to check the products.

Packing & Delivery

 If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
