Cable tray roll forming machine for philippines

  • >=1 Sets
    $60,000.00
Model Number:
Roll Forming Machine
Power:
45kw
Samples:
$500.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Tile Type:
Glazed Steel
Production Capacity:
3-8m/min
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Condition:
New
Use:
Other
Place of Origin:
China
Brand Name:
GH
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
21500*1200*1200
Weight:
25 tons
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Raw materials:
Steel
Color:
Blue
Product name:
cable tray roll forming machine
Product Keywords:
cable tray philippines
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for ocean
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
                                                               Cable tray roll forming machine(Only for reference)
The production line can produce many types of cable rack and other machinery products according to producing requirement.(steel coil width 225mm≤§≤1020mm)

Raw material request: Q235 cool steel.

Thickness: 1~2mm.

Line speed during hole punching: 3-8m/min

Total power: about 77.2kw

If you have your own special requirements,our machine can be also customized.
profile as following:

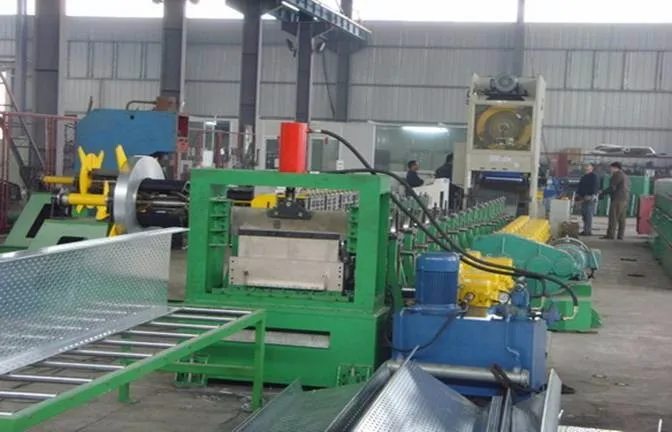

Whole machine:

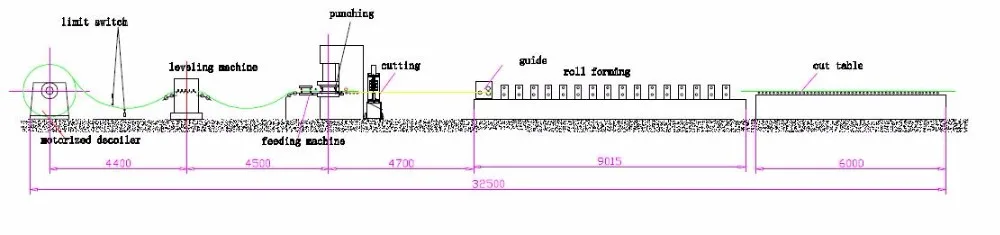

Technological process

Auto-de-coiler-----leveling----servo feeding----hole punching----roll forming --re-coiler

Equipment consists
NO.
Name
Quant.
Remark
1
Auto-de-coiler
1

2
Leveling machine
1
5.5kw frequency change drive motor, speed adjustable
3
Support frame
3
Roller type
4
NC900servo feeder
1
NC900 Servo motor drive
5
Punching press
1
120ton
6
punching mould
9

7
Main forming machine
1
100-900mm,thickness 1-3mm,material of roller:GCr 15
8
Hydraulic cutting machine
1

9
Cutting blade
9

10
Run-out table
1

11
Electric panel
1
PLC control system
Package&Delivery
Our Service

Enginer to test machine for clients.



Clents learning to check the products.



FAQ

 If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
